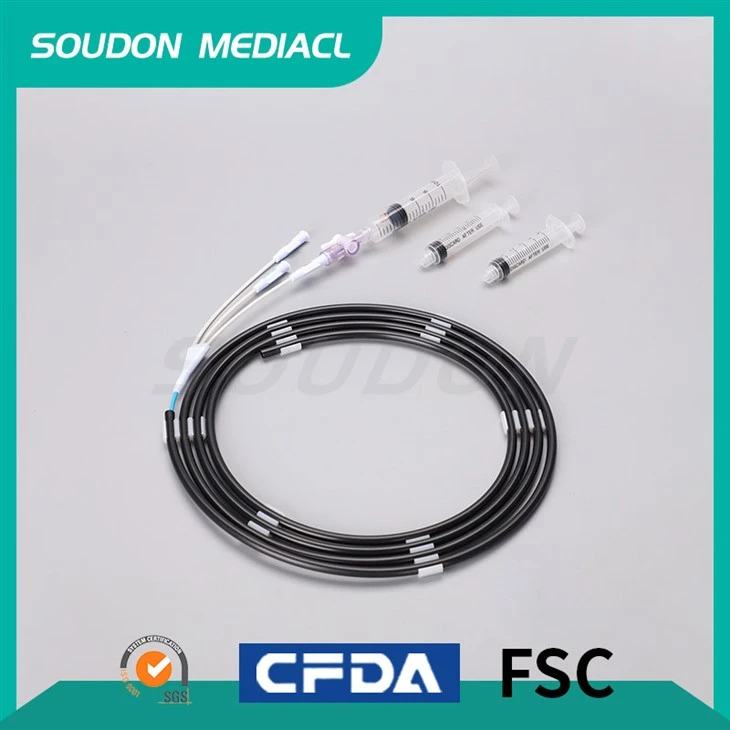

Balloon Extraction Ercp
For endoscopic retrograde cholangiography and stone extraction. With three separate channels for balloon extraction ERCP inflation, guide wire insertion and injection of contrast medium. Three step progressive balloon sizing via the pre-marked syringe, to better accommodate individual anatomical needs and to reduce the need for catheter exchanges.
Description
Features:
3-lumen construction allows the distal injection of contrast medium via separate port.

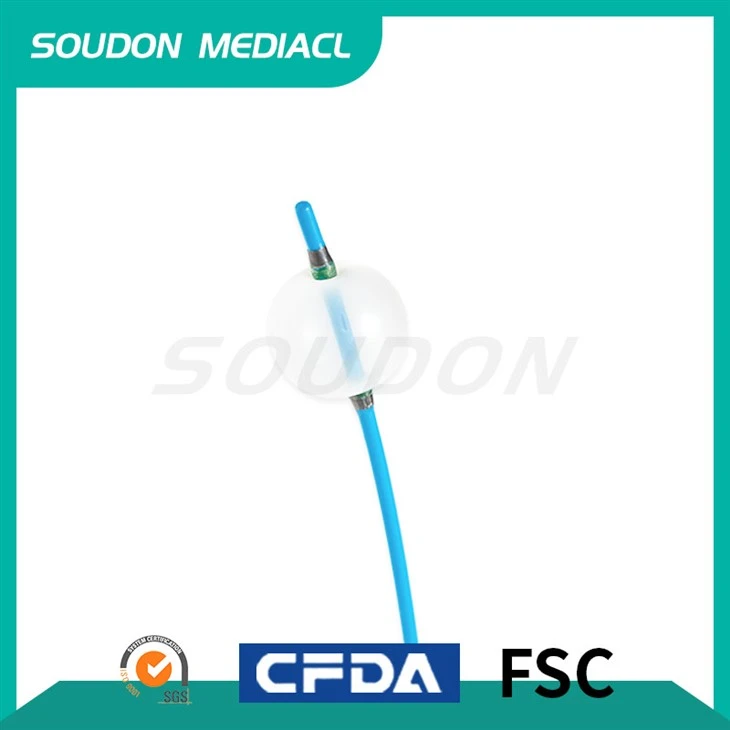

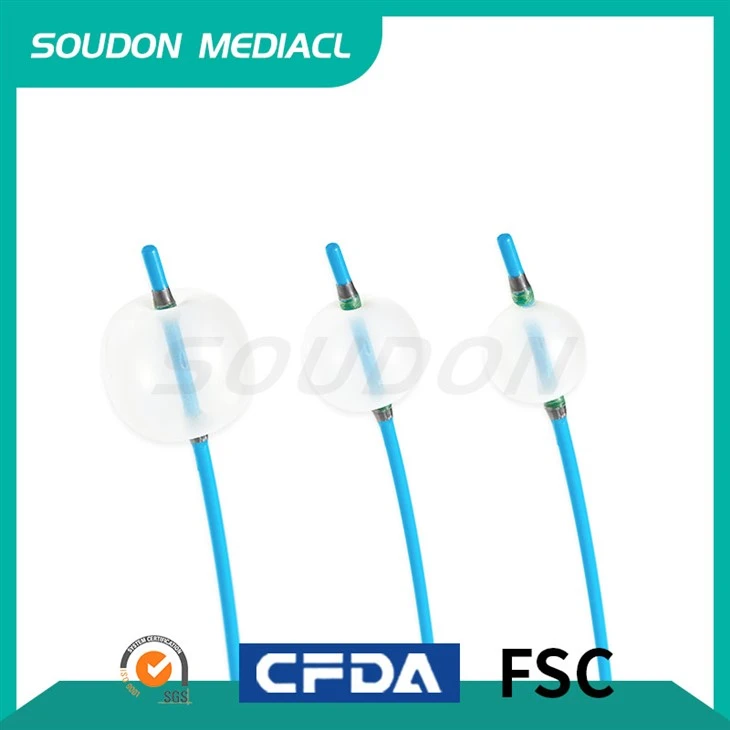

Multi-size balloon design to match individual anatomical requirements.
Suitable for guide wire 035” (7.5 F catheter).
Dual marker band for easy balloon positioning.
30 individual length markings at 1cm intervals for accurate positioning.
Specification:
Part No. | Channel OD (mm) | Balloon MAX OD (mm) | Volume (ml) | Exchange | Tuebe OD (mm) | Length (cm) | Triple Lumen Tube Color |
SD-10-T121518A | 3.2 | 12~15~18 | 1.6~2.6~5 | Triple （T） | 7.5Fr | 200 | Blue（A） |
SD-10-S121518A | 3.2 | 12~15~18 | 1.6~2.6~5 | With Rapid Exchange（S） | 7.5Fr | 200 | Blue（A） |
About our Factory:
Zhejiang Soudon Medical specialized in endoscope accessories for GI, ESD, and ERCP surgery for supplying ODM & OEM service.
