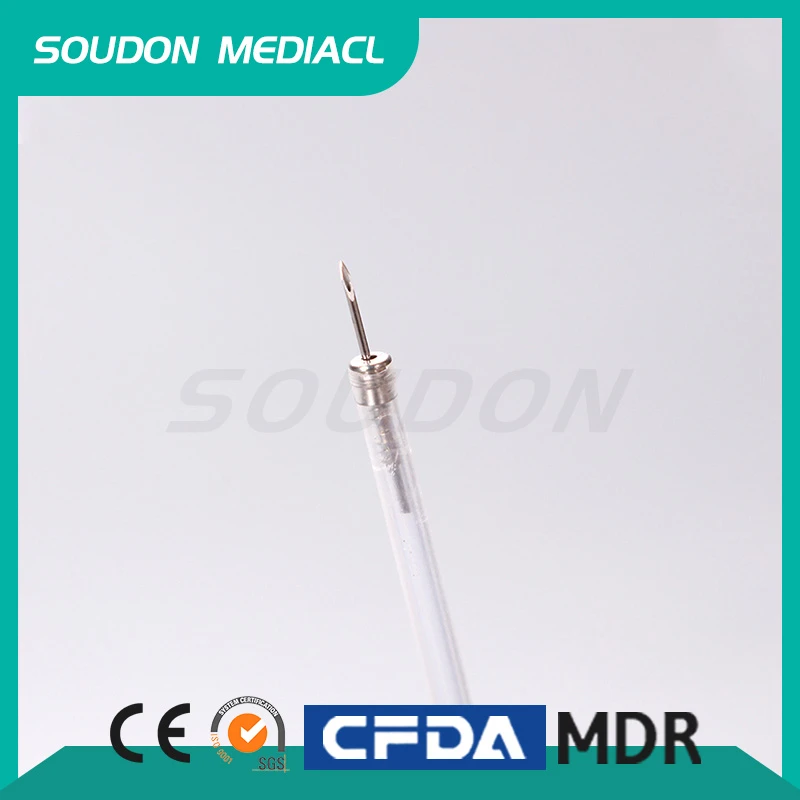

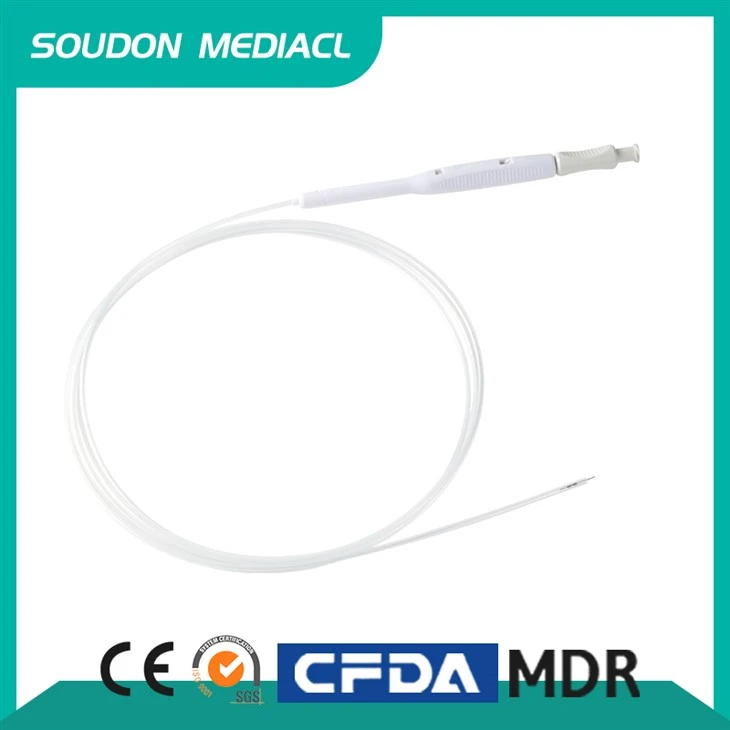

Single Use Endoscopic Needle

This single use endoscopic needle is used in combination with endoscope for the injection treatment of esophageal and gastric varices, and the injection of submucosa in digestive tract.

Send Inquiry

Description

Features:

User-friendly and comfortable handle operation

Strong and super lubricated outer sheath allows for easy advancement through tortuous anatomy through the endoscope channel

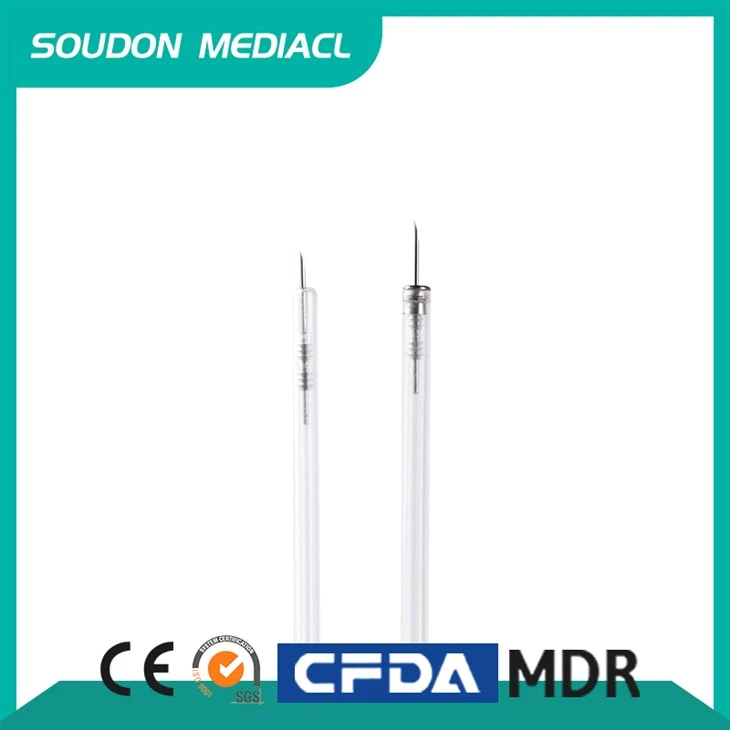

Unique section design of needle tip

Sterilized, single-use to prevent patient cross-contamination.

Specification:

Part No.	Catheter OD （mm）	Effective Length （cm）	Model Needle (G)	Needle Extension Length (mm)	Metal End Cap
SD-04-A2323-4 *	2.3	230	23	4	TYPE A Without metal end cap
SD-04-A2323-6 *	2.3	230	23	6	TYPE A Without metal end cap
SD-04-A2325-4	2.3	230	25	4	TYPE A Without metal end cap
SD-04-A2325-6	2.3	230	25	6	TYPE A Without metal end cap
SD-04-A1823-4	2.3	180	23	4	TYPE A Without metal end cap
SD-04-A1823-6	2.3	180	23	6	TYPE A Without metal end cap
SD-04-A1825-4	2.3	180	25	4	TYPE A Without metal end cap
SD-04-A1825-6	2.3	180	25	6	TYPE A Without metal end cap
SD-04-B2323-4	2.3	230	23	4	TYPE B With metal end cap
SD-04-B2323-6	2.3	230	23	6	TYPE B With metal end cap
SD-04-B2325-4	2.3	230	25	4	TYPE B With metal end cap
SD-04-B2325-6	2.3	230	25	6	TYPE B With metal end cap
SD-04-B1823-4	2.3	180	23	4	TYPE B With metal end cap
SD-04-B1823-6	2.3	180	23	6	TYPE B With metal end cap
SD-04-B1825-4	2.3	180	25	4	TYPE B With metal end cap
SD-04-B1825-6	2.3	180	25	6	TYPE B With metal end cap
